Chalk pump set 1600 liters

A compact and favorably priced chalk pump set, with a tank capacity of 1,600 liters. This is more than enough capacity for one hectare of spray liquid.

The pump set is moved using a forklift truck. If the greenhouse wall is not accessible with a forklift, the wheeled pump trailer 1,600 liters or 2,000 liters is a better choice.

Read more

Do you have questions about our products?

Get in touch with us

Tom Zwanenburg

tom@vdwaay.nl

+31 (0) 613 005 273

Comet diaphragm pump

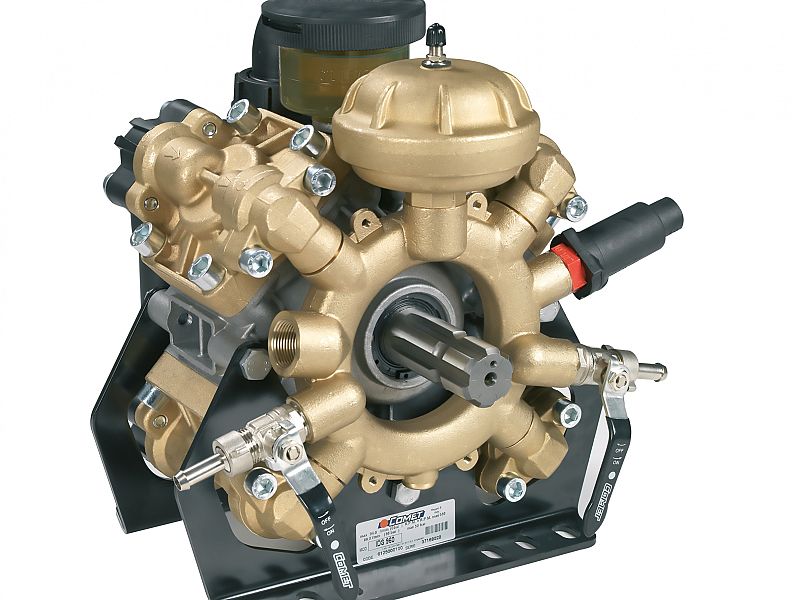

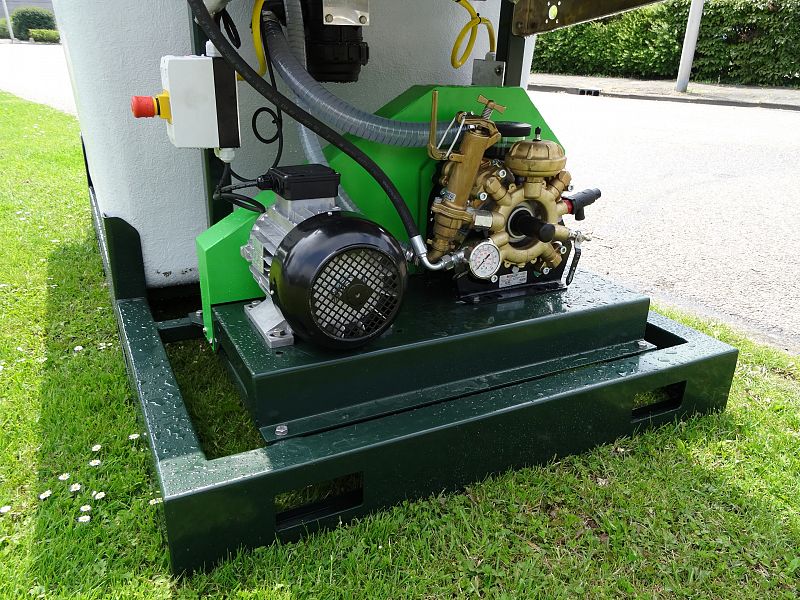

This pump set is equipped with a Comet IDS 960 diaphragm pump. In our opinion this is the best available pump for pumping; various coatings (screen agents), powdered chalk, and fluoride based glass cleaners. The pressure regulator has an extra hardened pressure pin to minimize wear from "sharp" particles in the spray liquid. The pump housing is made of brass.

The IDS 960, powered by a 400/480V - 5.5Kw electric motor has a capacity of 57 liters per minute and a maximum pressure of 50Bar.

When powered by a gasoline engine, the pump has a maximum output of 90 liters per minute.


Mixing bin with built-in stirrer

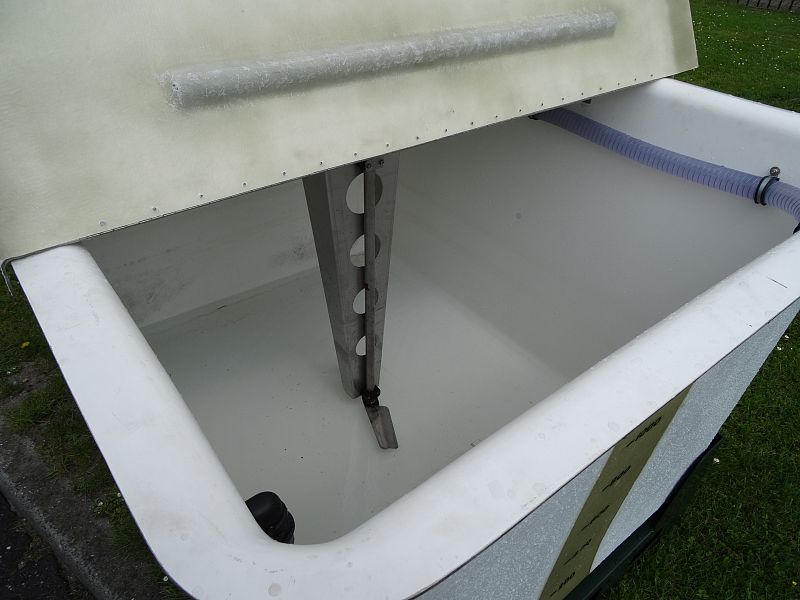

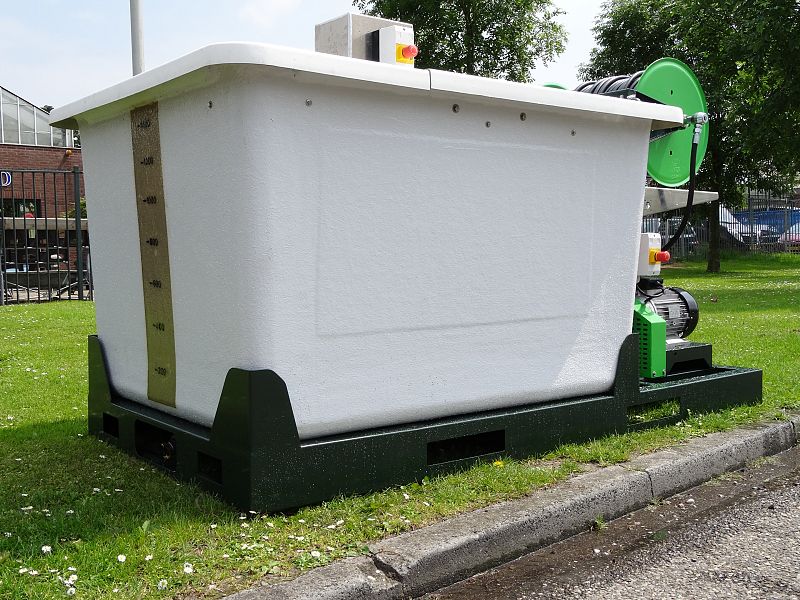

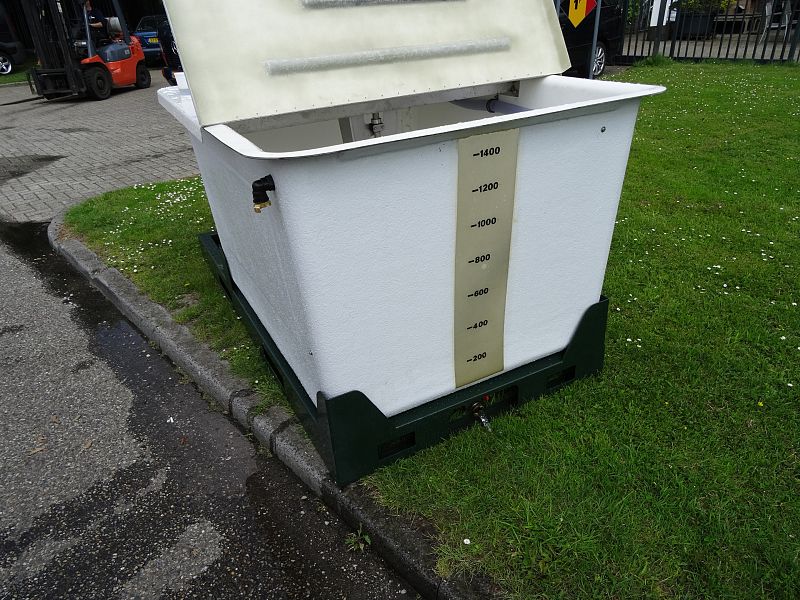

The polyester mixing container with a capacity of 1,600 liters is equipped with a measuring scale and has a large hinged lid that makes filling and cleaning the container very easy.

The stainless steel stirrer prevents the coating from settling and can run continuously, even when the pump is switched off. You can therefore continue to mix the remaining spray liquid until the next morning.

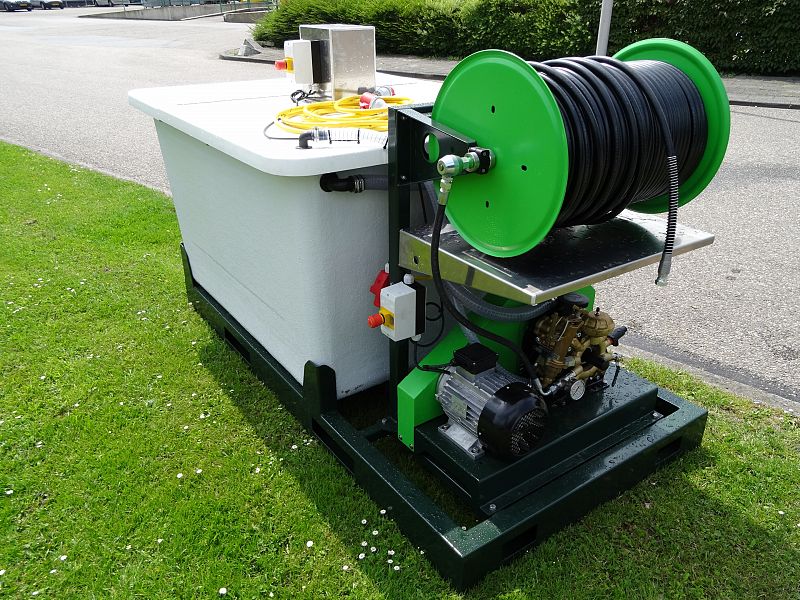

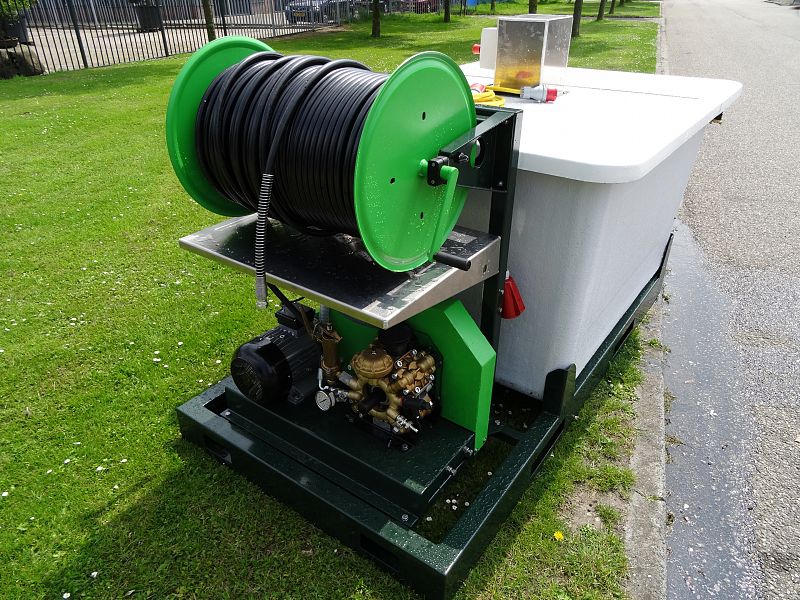

Hose reel

The manual hose reel is filled with a lightweight high-pressure hose, which is connected to the platform of the machine.

Powder coated frame

The steel frame is finished with a powder coating which makes the frame easy to clean. The frame is equipped with two recesses for moving the pump set with a forklift.

Connection for greenhouse roof washer

The electrically driven pump set has an extra socket to which the power cable of the Top Cleaner greenhouse deck cleaner can be connected. This is very handy when there is only one connection to the greenhouse wall.

Special editions

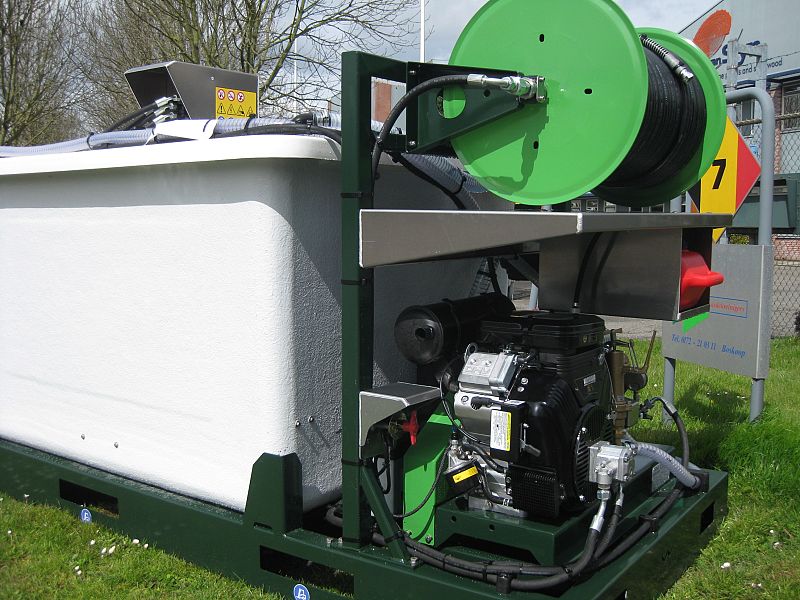

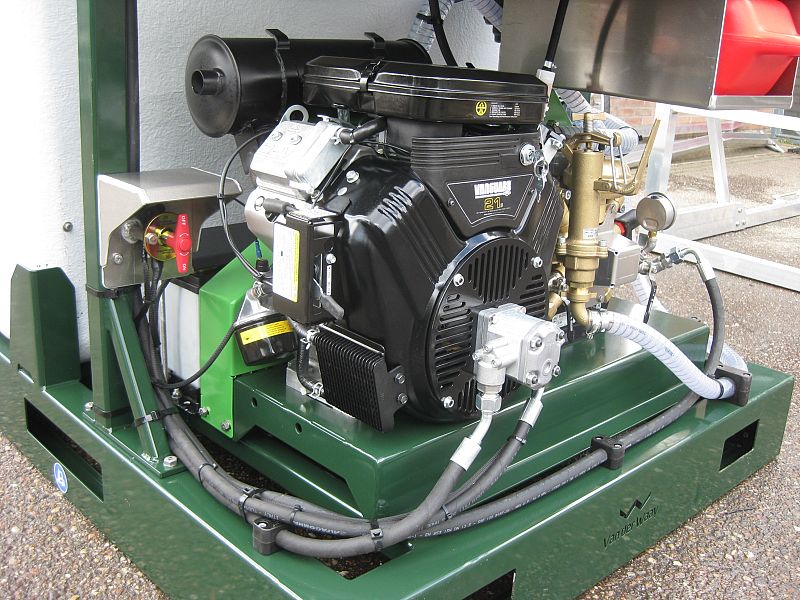

Chalk pump set 1,600 liters with petrol engine drive

When an electrical connection is not readily available, it can be practical to drive the pump set by means of a petrol engine. In that case the electric drive of the agitator will be replaced by a hydraulic motor. The disadvantage is that the engine will have to be running to drive the agitator.

We have chosen a reliable 4-stroke Briggs & Stratton engine of 18 HP. A big advantage is that this manufacturer has a worldwide dealer network, so parts are available everywhere.

The engine has an electric starter. The starter battery is of course also included.

The diaphragm pump has a capacity of over 90 liters per minute, and the maximum operating pressure is 50Bar.

Other specifications are the same as those of the electrically powered version.
