Spray carts

Chalk pump set 2 x 1000 liters

The perfect pump set for larger greenhouse areas. Thanks to the double mixing bin, you won't lose any time.

Read more

Do you have questions about our products?

Get in touch with us

Tom Zwanenburg

tom@vdwaay.nl

+31 (0) 613 005 273

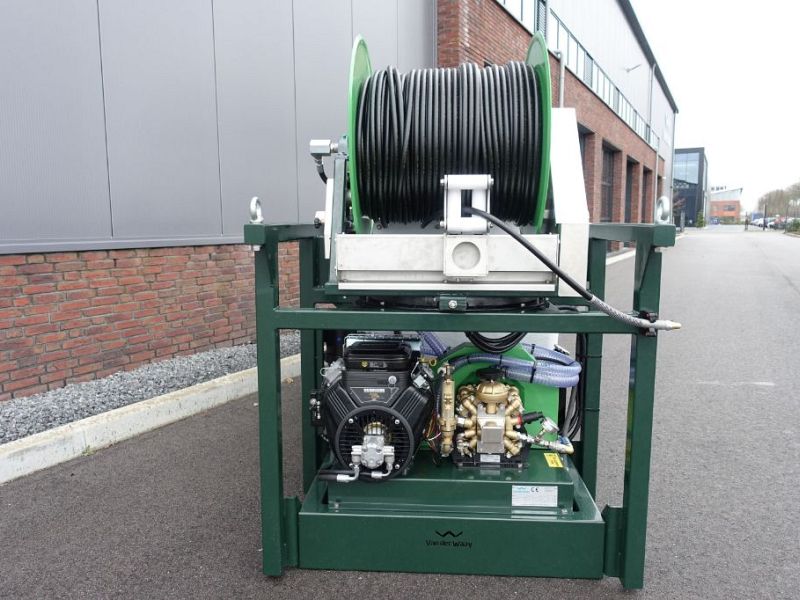

Comet diaphragm pump

This pump set comes with a Comet IDS 960 diaphragm pump. In our opinion this is the best available pump for pumping; various coatings (screen agents), powdered chalk, and fluoride based glass cleaners. The pressure regulator has an extra hardened pressure pin to minimize wear from "sharp" particles in the spray liquid. The pump housing is made of brass.

The IDS 960, powered by an 18HP Briggs & Stratton gasoline engine has a generous capacity of 90 liters per minute and a maximum pressure of 50Bar.

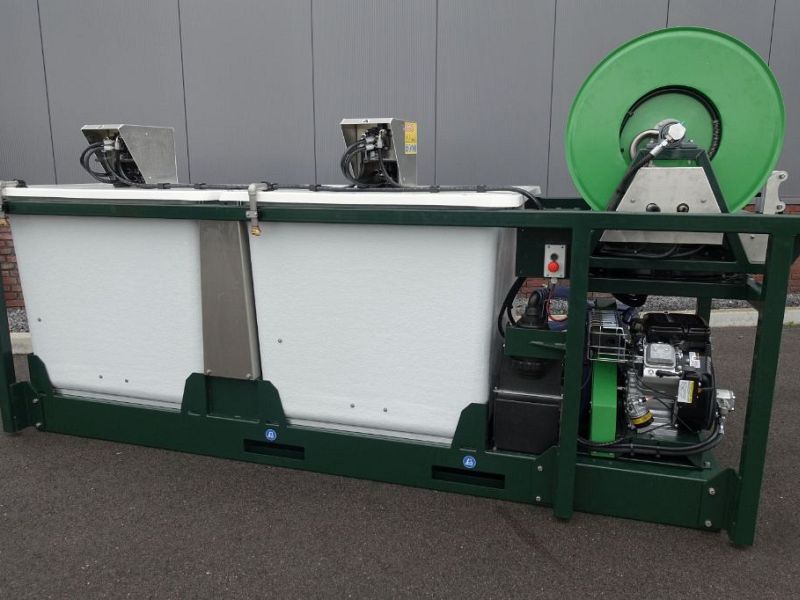

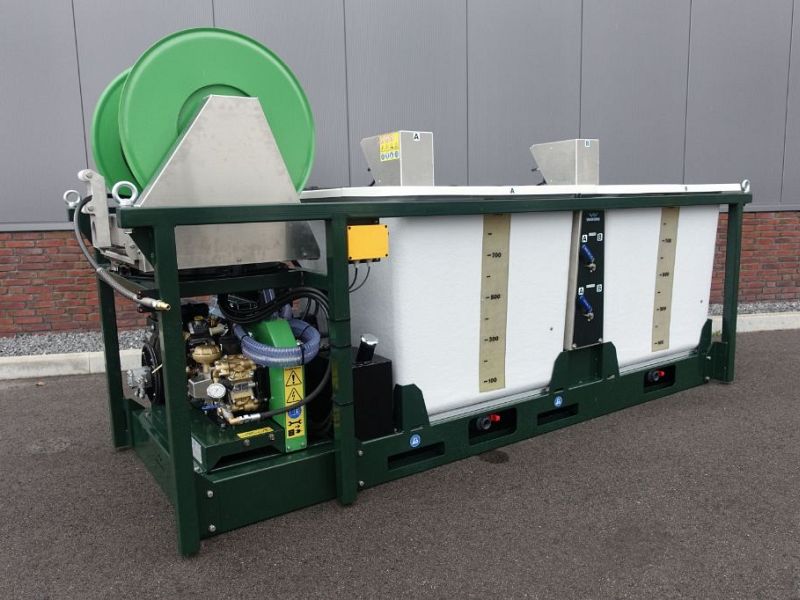

Double mixing bowl with built-in stirrers

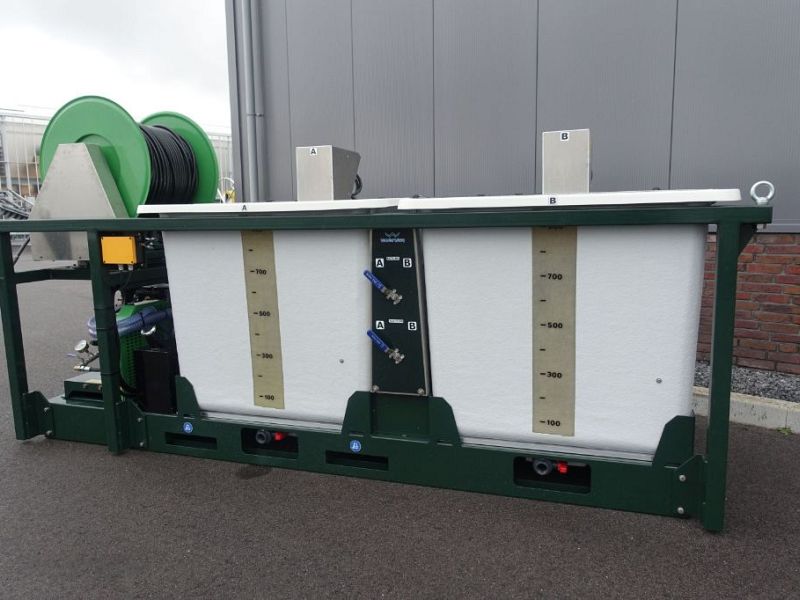

The polyester mixing buckets each have a capacity of 1,000 liters and are fitted with a graduated scale and have large hinged lids that make filling and cleaning the buckets very easy.

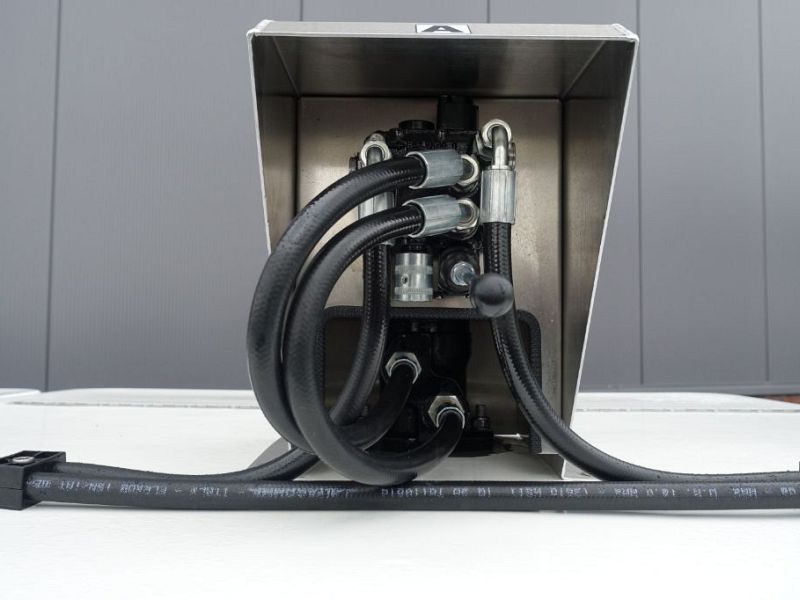

The stainless steel, hydraulically driven stirrers prevent the settling of the spray liquid.

You can fill the mixing containers as you wish, for example one mixing container with glass cleaning agent and the second mixing container with clean water for rinsing the glass.

Easy to move

The pump set is equipped with four lifting eyes, and it can also be moved with a forklift.

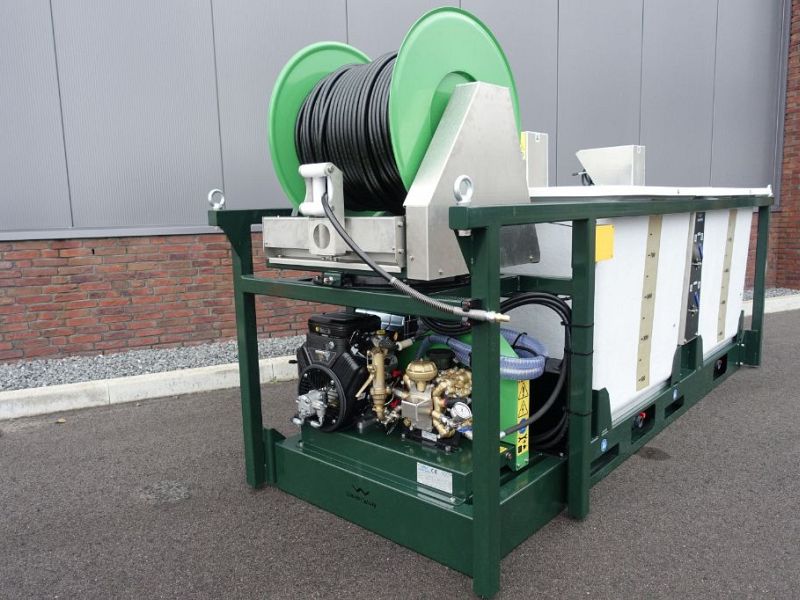

Hydraulic hose reel with hose guide

The hose reel is fitted with a hose guide so that the hose is always distributed evenly across the drum during reeling.

In addition, the reel is mounted on a swivel so that it is possible to lock the reel in three different positions so that the hose can be positioned right in front of the greenhouse gutter. The positions are:
  • straight
  • 90 degrees counter clockwise
  • 90 degrees to the right

Radio remote control

The command to start and stop the hose reel can be given by a push button next to the reel, or with the supplied remote control.
